    1.2km HS1200 High Precision 3D Terrestrial Laser Scanners 500kHz PRR

    1.2km range HS1200 High Precision 5mm@100m 3D Laser Scanner with 500kHz PRR and Scan Fov 100°*360°

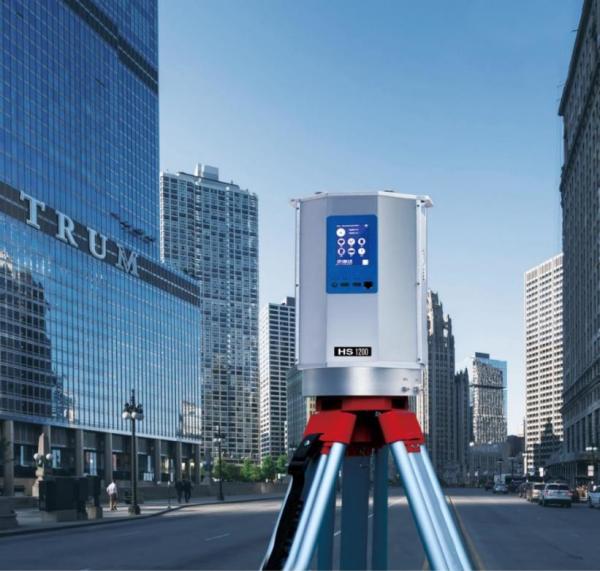

    HS1200 high precision 3D laser scanner is a pulse based, high-precision and high frequency 3D laser scanner. It is independently developed by Wuhan Hi-Cloud Technology Co.,Ltd. It is equipped with the full business process 3D laser point cloud processing software which is also independently developed by Hi-Cloud.


    It is designed to be widely used in digital cultural heritage, digital city, topographic mapping, deformation monitoring, digital factory, tunnel engineering, construction BIM and other fields with high measurement accuracy, high point cloud processing efficiency and diversified application results.


    Specification

    HS1200 High Precision 3D Laser Scanner

    ItemsParameters
    Ranging ModePulse
    Laser ClassClass 1 (eye safe)
    Laser Beam Divergence≤0.35mrad
    Echo ModeFull waveform, multi-echo technology
    Max. Range1200m
    Min.Range2.5m
    Accuracy5mm@100m
    Panorama Camera Resolution>70M pixels(external camera)
    Laser Pulse Repetition Rate PRRUp to 500kHz
    Scan FoVvertical100°(-40°+60°)
    horizontal360°
    Angular Measurement Resolutionvertical0.001°
    horizontal0.001°
    Scan Speedvertical3-150scans/s
    horizontalmax. 36°/s
    Dual-axis tilt sensorRange±5°
    Resolution0.001°
    Data Storage240GB(SSD)
    Data TransmissionGigE/USB2.0
    Control PanelFull-color touch panel
    Communicate InterfaceGigE/USB2.0/WLAN/Camera Trigger/GPS Synchronization,etc.
    Battery Life>4H
    Temperature Range-20℃+65℃(operation)
    -40℃+85℃(storage)
    Humiditynon condensing
    Light Conditioncan be operated in strong sunlight or darkness
    Protection ClassIP64
    Main DimensionsΦ188mm×318mm
    Weightca.11Kg
    ①1200m@90%; 980m@60%; 800m@40%; 450m@20%
    ②295m 500kHz; 495m 300kHz; 1200m 100kHz

    Product Features

    • High accuracy: 5mm@100m
    • High frequency: Max. Scanning frequency: 1,000,000 points/s
    • Fully independent: Fully independent intellectual property rights and guaranteed upgrade
    • Easy to expend: external GPS and camera

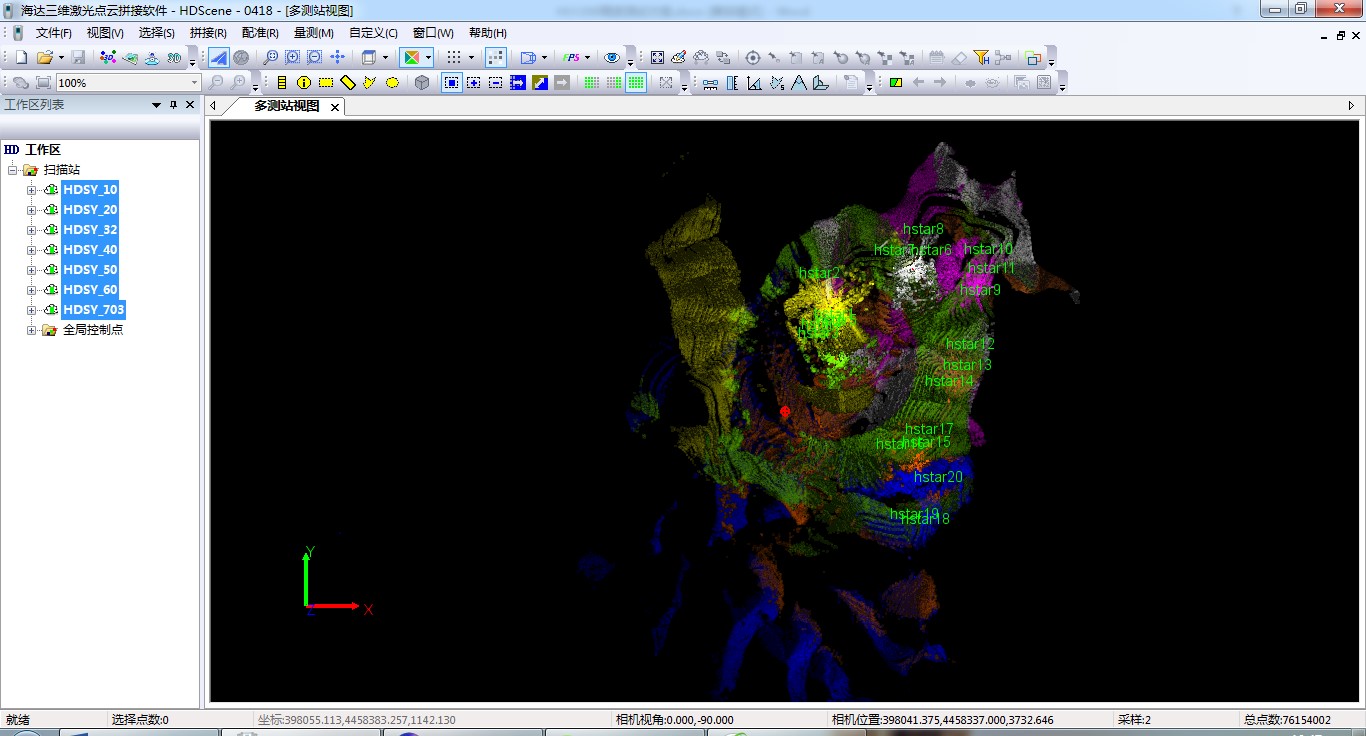

    • Whole process: supporting a series of self-developed software

    Application of Topographic Survey

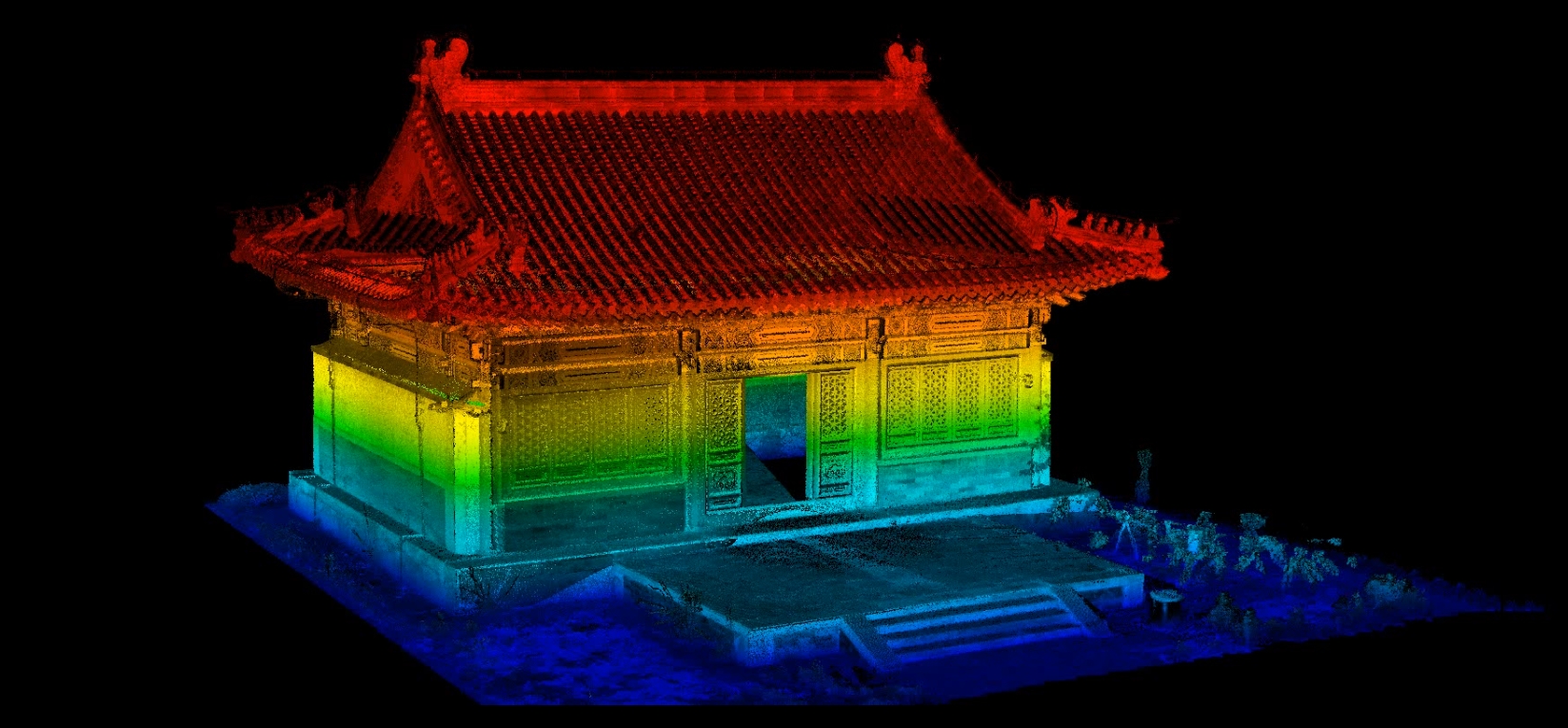

    Application of Ancient Building Measurement


    Application of Power Line Survey


    Application of Irregular Structure Survey
