Lightweight ARS-1000L UAV LiDAR Terrain Mapping System 5m-1350m Range

    Buy cheap Lightweight ARS-1000L UAV LiDAR Terrain Mapping System 5m-1350m Range from wholesalers

    Buy cheap Lightweight ARS-1000L UAV LiDAR Terrain Mapping System 5m-1350m Range from wholesalers
    • Buy cheap Lightweight ARS-1000L UAV LiDAR Terrain Mapping System 5m-1350m Range from wholesalers

    Lightweight ARS-1000L UAV LiDAR Terrain Mapping System 5m-1350m Range

    Ask Lasest Price
    Brand Name : Hi-Cloud
    Model Number : ARS-1000L lightweight UAV LiDAR System
    Certification : ISO, others upon the requests
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10 sets/month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    Lightweight ARS-1000L UAV LiDAR Terrain Mapping System 5m-1350m Range

    4.5kg lightweight 15mm@150m ARS-1000L UAV LiDAR System multi operation mode and 5m to 1350m range


    ARS-1000L UAV LiDAR system is a is a Riegl LiDAR based system which developed and built by Hi-Cloud. It integrates sensors such as high-precision laser, high-definition camera, GPS, MEMS inertial navigation and storage control unit. Supported by time synchronization technology of independent intellectual property and integrated multi-sensor integration technology, it synchronously obtains 3D laser point cloud, POS data and image data. The system has the advantages of light weight, convenient transportation and high efficiency of results processing. It is widely used in emergency mapping, topographic mapping, power line inspection, highway survey, coastal reef survey, excavation and filling calculation, archaeological survey and mapping and other fields.


    Specification

    ARS-1000L UAV LiDAR System

    ItemsParameters
    System PerformanceAbsolute Accuracy±5cm
    Weight4.5kg
    Operation ModeAirborne/Vehicle mounted/Backpack
    Laser Scanning UnitLaser ClassificationClass 1
    Max. Measurement Range1350m@60%
    Max. Effective Scan Speed750,000points/s
    Data Update Rate200Hz
    FoV330°
    Angular Resolution0.001°
    Multi-echo FunctionAvailable
    INSPosition Accuracy (post-processing)Horizontal0.01m
    Elevation0.02m
    Heading Accuracy0.010°
    Pitch/roll Accuracy0.005°

    System advantages:


    • Easy to install, installation without any tools by single person
    • Easy to operate, one click to start, remote control
    • High accuracy, absolute accuracy up to 5cm
    • Multi platform, applicable to airborne, vehicle mounted and backpack mode
    • Calibration free, integrated design, relative position of multi sensors fixed
    • Base station free

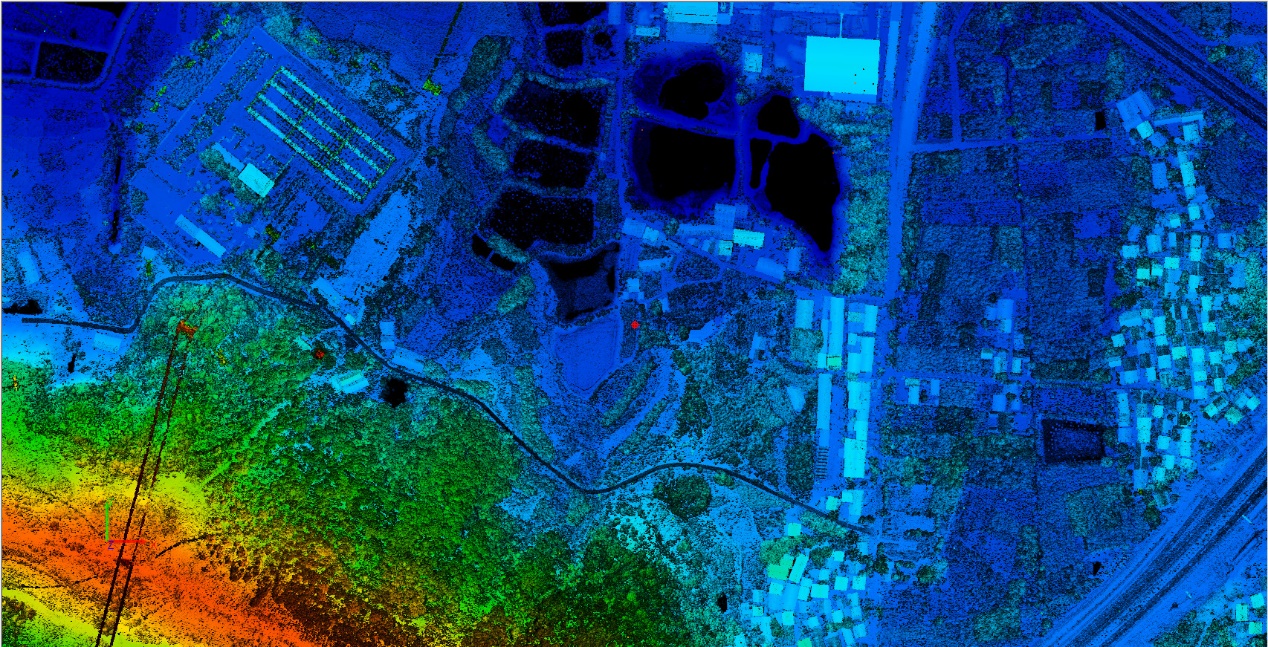

    Application of Highway Reconstruction and Expansion
